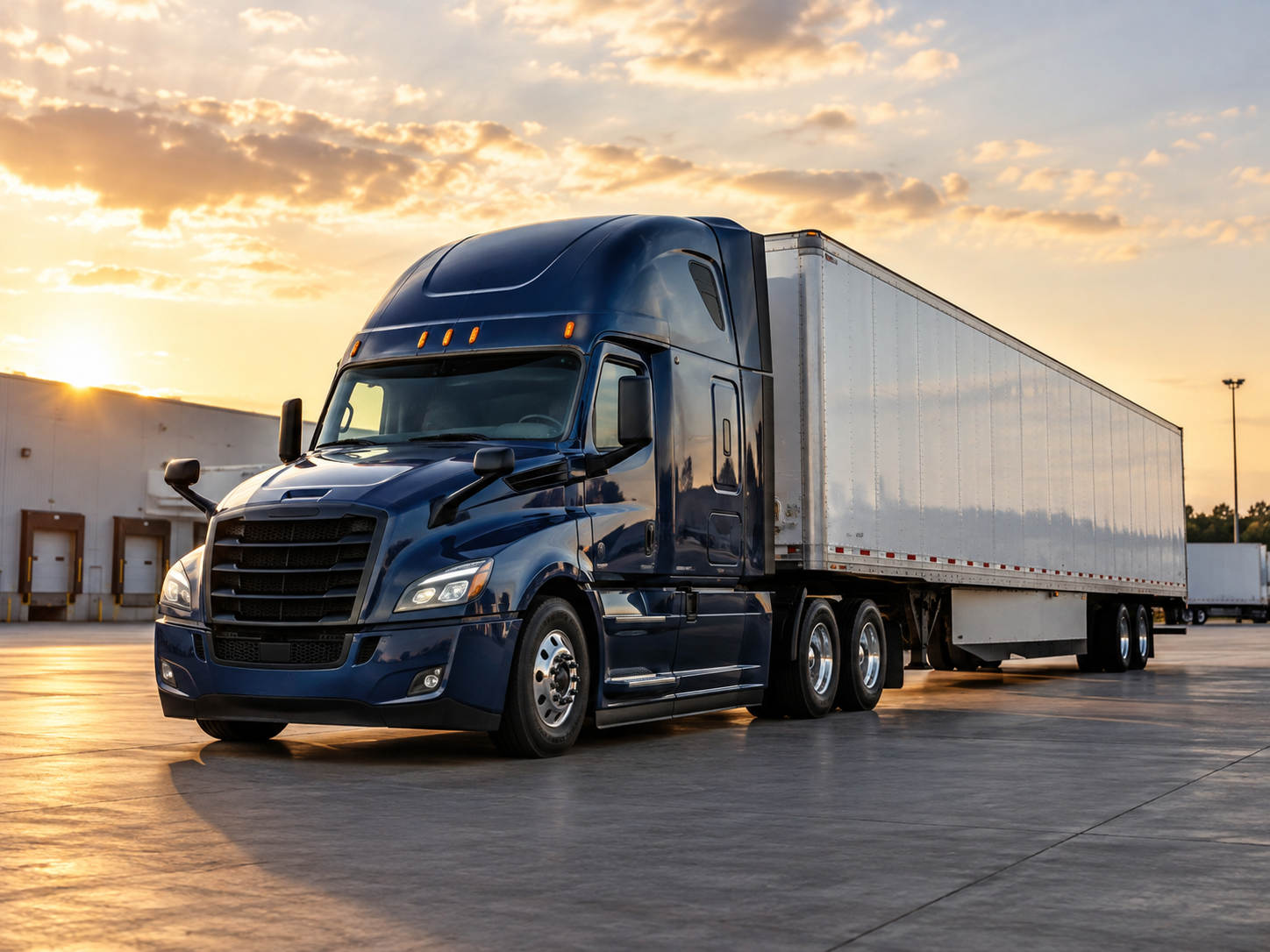

Plan the shipment, then confirm the equipment. Dry vans, reefers, flatbeds, box trucks and cargo vans are my main equipment options. This broader reference also explains specialized equipment and power-only service. Ask me to confirm suitability and availability for your lane before making a shipping plan.
Trailer length usually names the overall trailer size, not the clear cargo length. Exterior width, interior width and door opening are different measurements. Payload means cargo weight; gross weight includes the vehicle, cargo, fuel and equipment.
Equipment dimensions and payloads are typical planning figures, not guaranteed limits. Actual capacity depends on the tractor, trailer, axle configuration, commodity, route, state regulations, and permitting requirements. I confirm equipment requirements with the carrier before booking through UCW Logistics.
Equipment images are illustrative examples, not photos of a dedicated UCW fleet or proof of exact dimensions, payload or loading requirements.
Enclosed
Weather protection, general freight and temperature-controlled shipping.
01

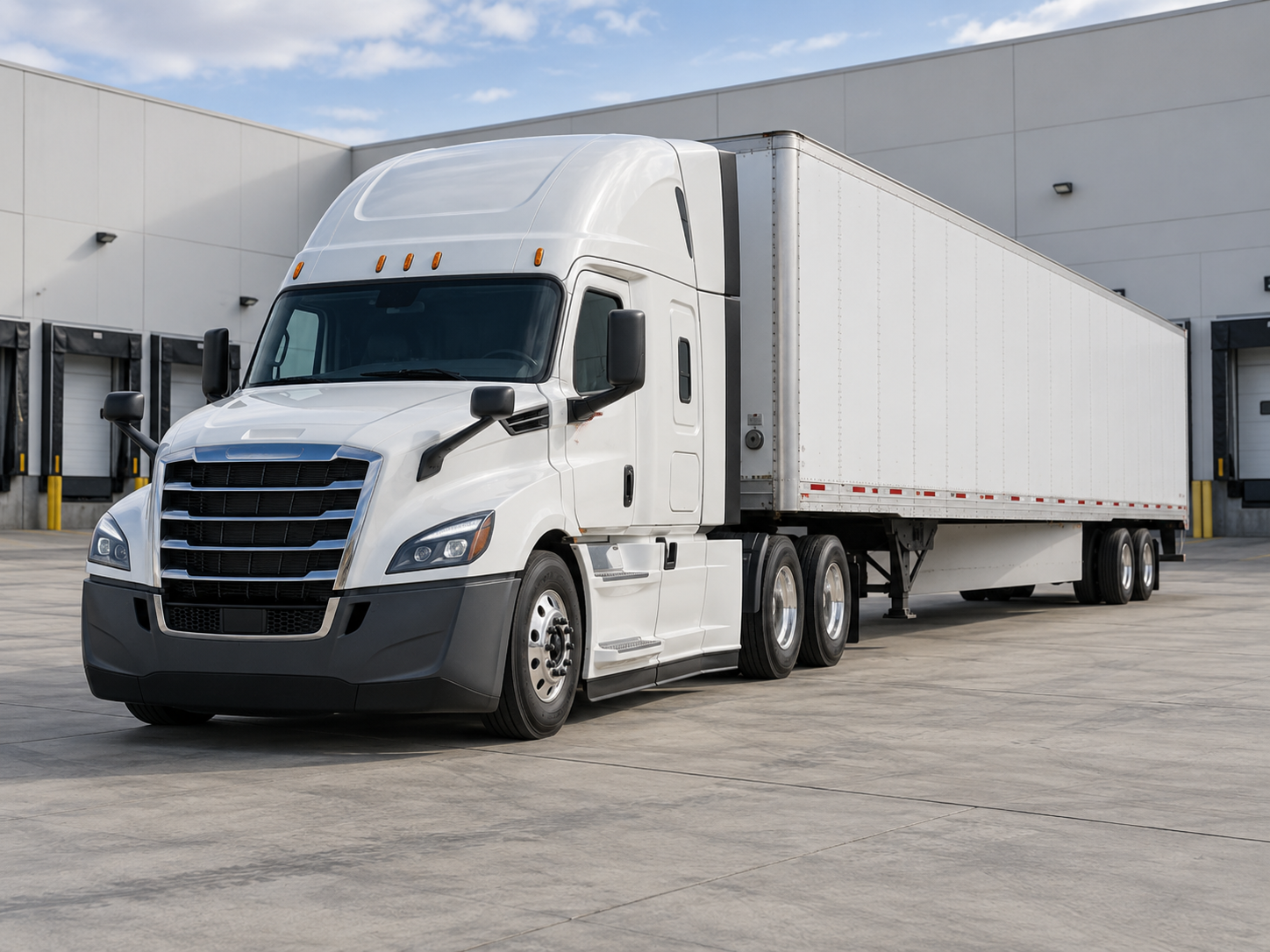

53' Dry Van
Best for Palletized freight, boxed goods, packaged products, consumer goods and most general freight.
Typical size
53' nominal trailer length. Interior width is often about 98–101 inches; interior height roughly 102–111 inches. Confirm clear length and door opening.
Typical payload / capacity
Approximately 42,000–45,000 lb.
Pallet capacity
About 26 standard 48 × 40 inch pallets in a suitable single-layer arrangement; freight overhang and loading pattern affect fit.
Loading notes & quote checklist
Good to know
Enclosed and weather protected. Normally rear-loaded at dock height with a forklift or pallet jack; no temperature control.
Before requesting a quote
Commodity, total weight, pallet count and dimensions, stackability, dock availability and special handling.

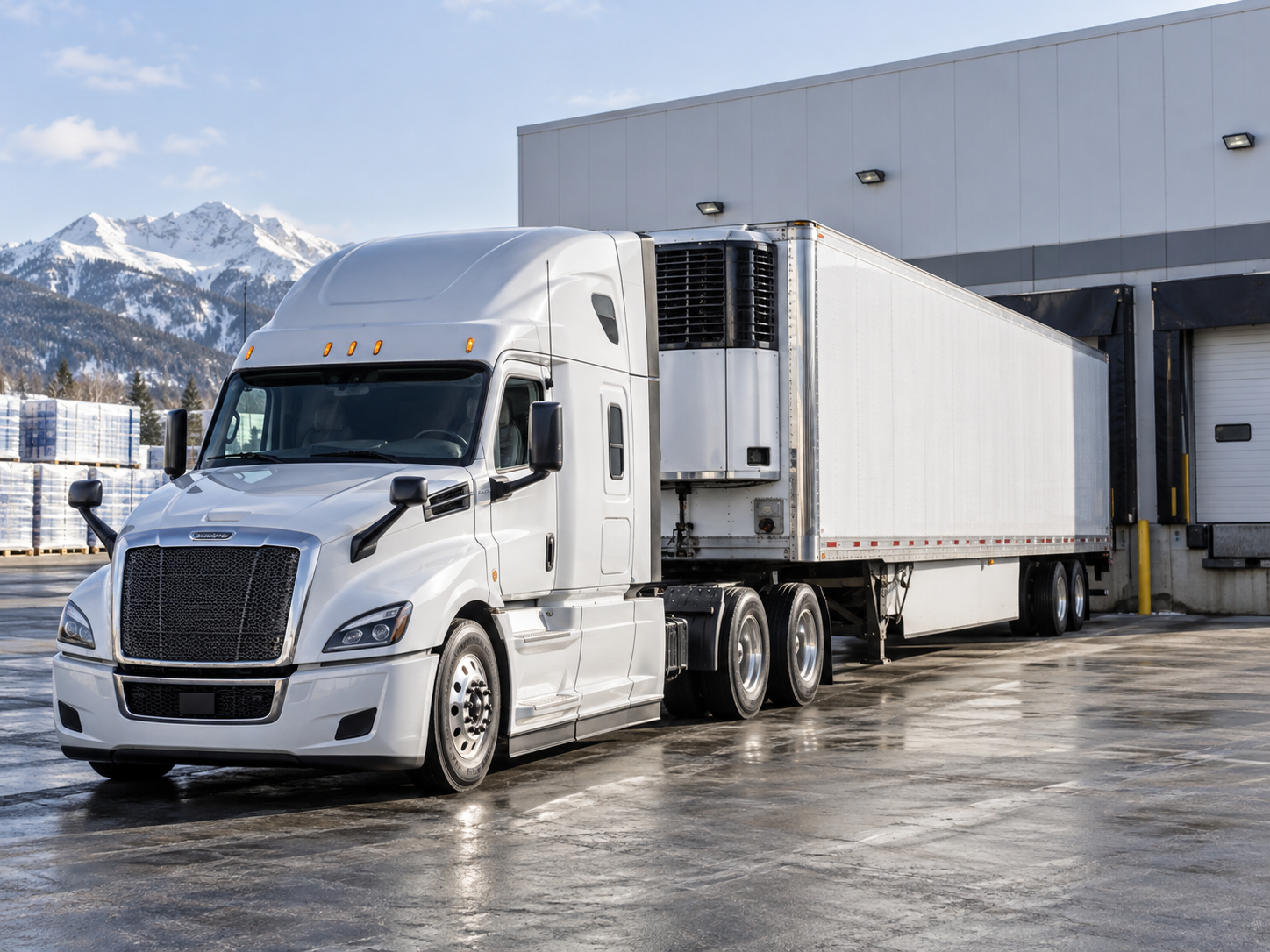

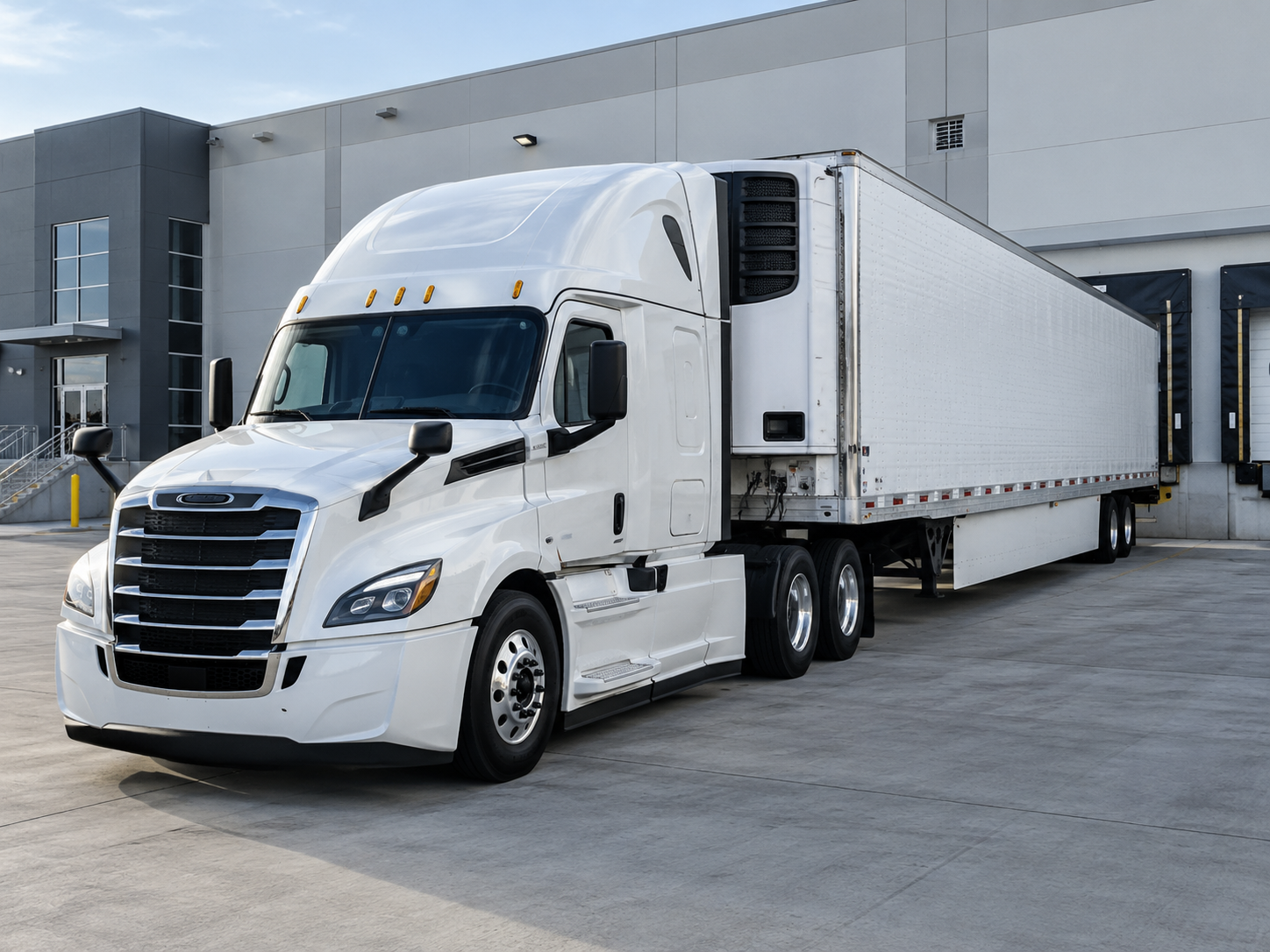

Best for Produce, frozen products, dairy, meat, beverages and other temperature-sensitive freight. Pharmaceutical shipments may require additional qualifications.
Typical size
53' nominal trailer length; roughly 8'–8'2" interior width × 8'2"–8'8" interior height. Insulation, air chutes and bulkheads reduce clear space.
Typical payload / capacity
Approximately 42,000–44,000 lb.
Loading notes & quote checklist
Good to know
Insulated walls and a refrigeration unit provide temperature control. Space must be left for the required airflow, so physical fit alone is not enough.
Before requesting a quote
Required temperature, continuous or cycle mode, pre-cooling, loading and product temperatures, washout and any product-specific qualifications.

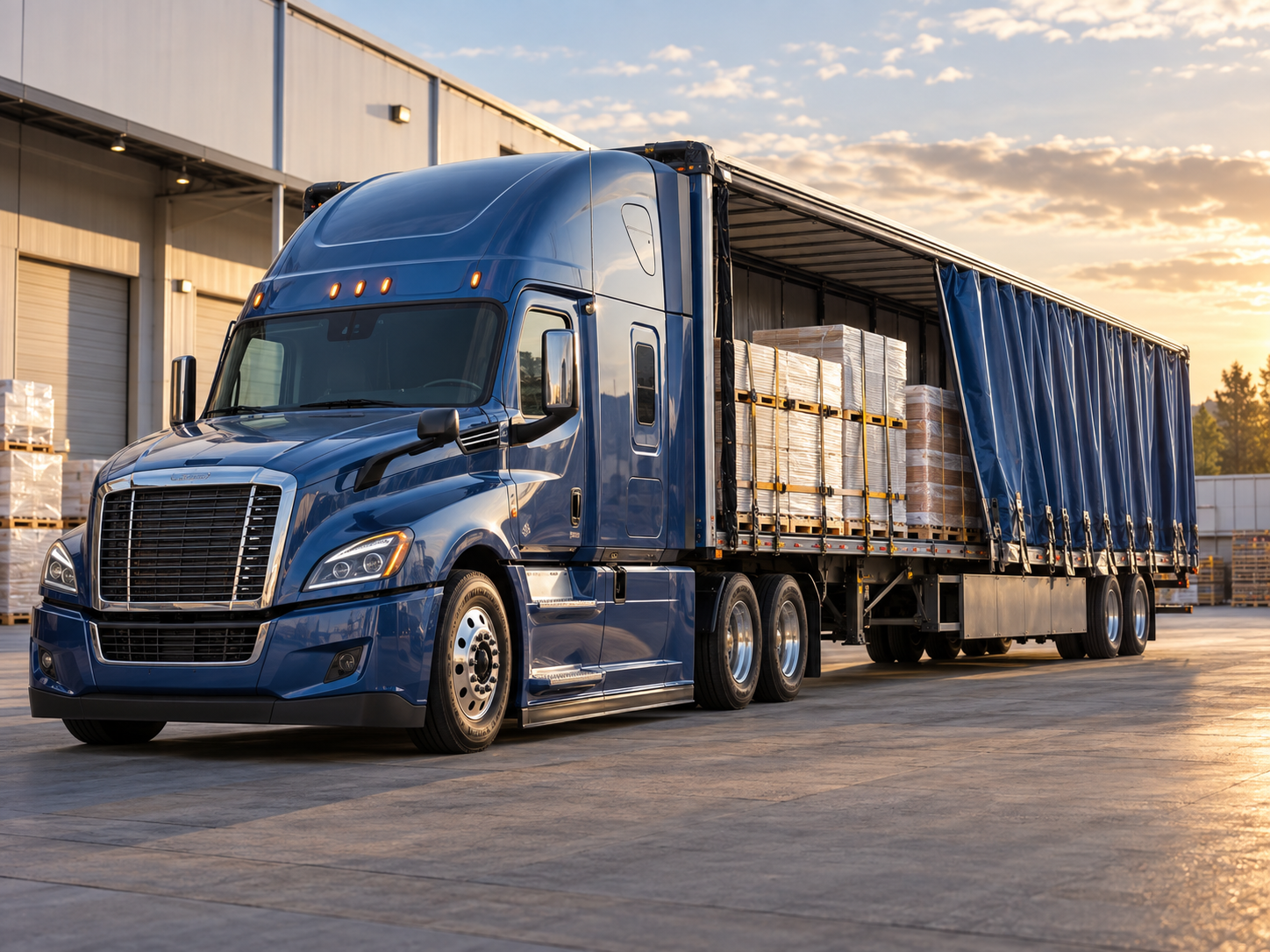

Best for Palletized products, building materials, lumber, beverages and freight that benefits from side access.
Typical size
48'–53' nominal length × about 8'6" exterior width. Interior space and side openings vary.
Typical payload / capacity
Approximately 42,000–45,000 lb.
Loading notes & quote checklist
Good to know
Flexible curtains open along the sides, with a fixed roof on many designs. Curtains provide weather protection; cargo securement must be confirmed separately.
Before requesting a quote
Pallet dimensions, side-loading clearance, loading equipment, securement and whether rear access is also needed.

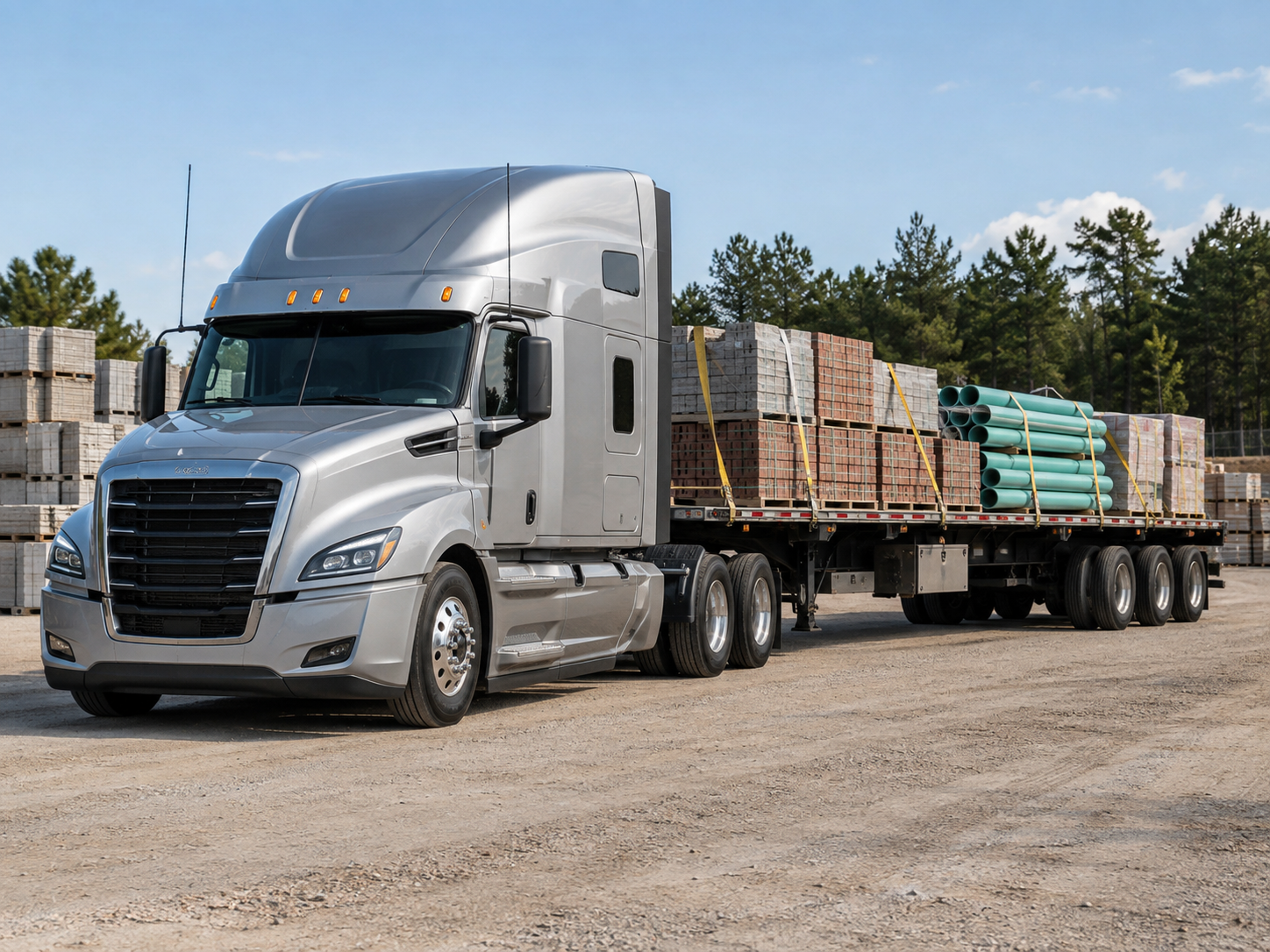

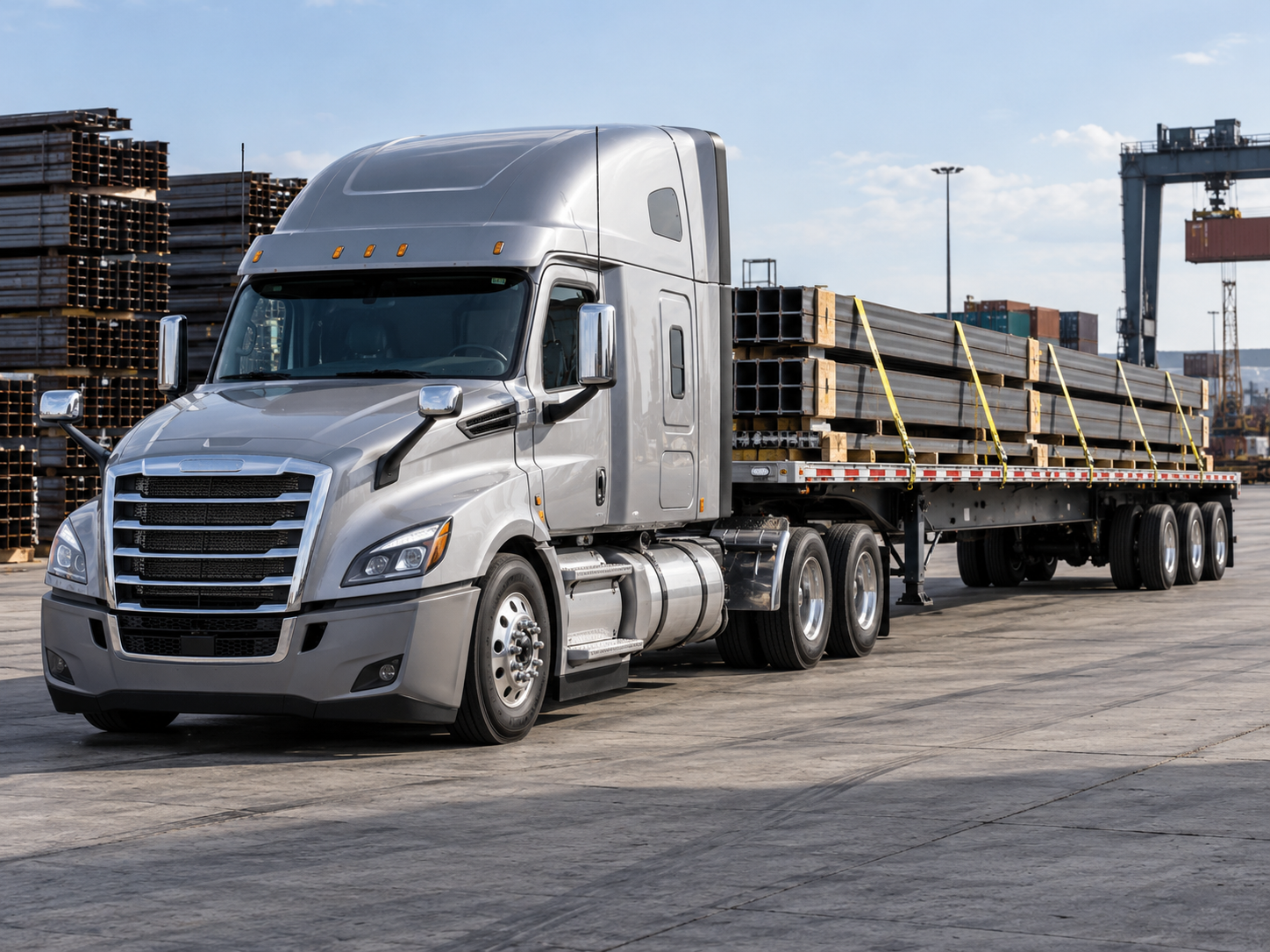

Best for Steel, lumber, construction materials, pipe, machinery and general open-deck freight.
Typical deck
48' long × 8'6" wide.
Typical payload / capacity
Approximately 45,000–48,000 lb.
Loading notes & quote checklist
Good to know
A common open-deck configuration. A shorter deck does not automatically mean a lower payload; the tractor, trailer and axle loading determine what can move.
Before requesting a quote
Cargo footprint, total and concentrated weight, loading access, tarps and securement requirements.

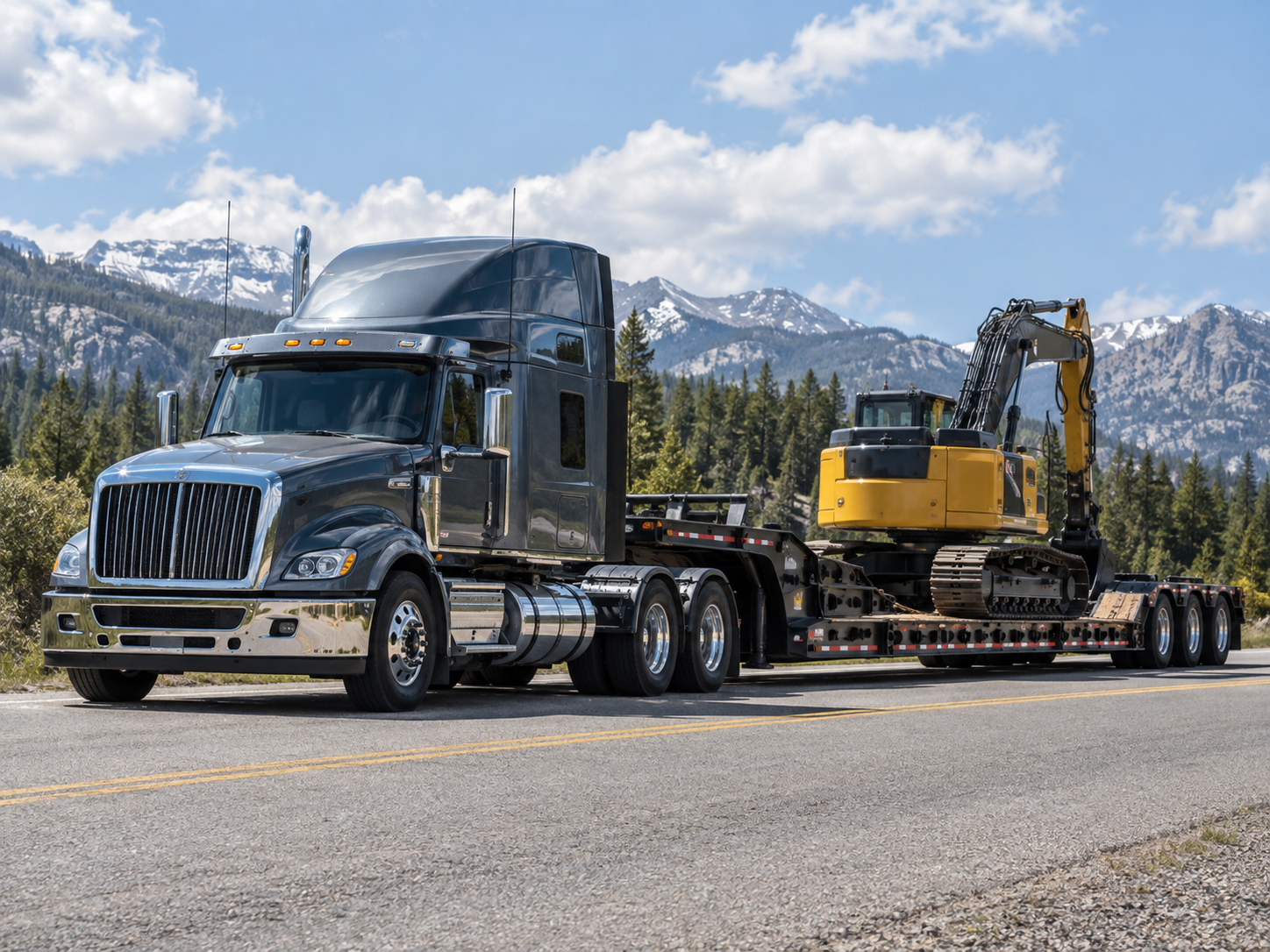

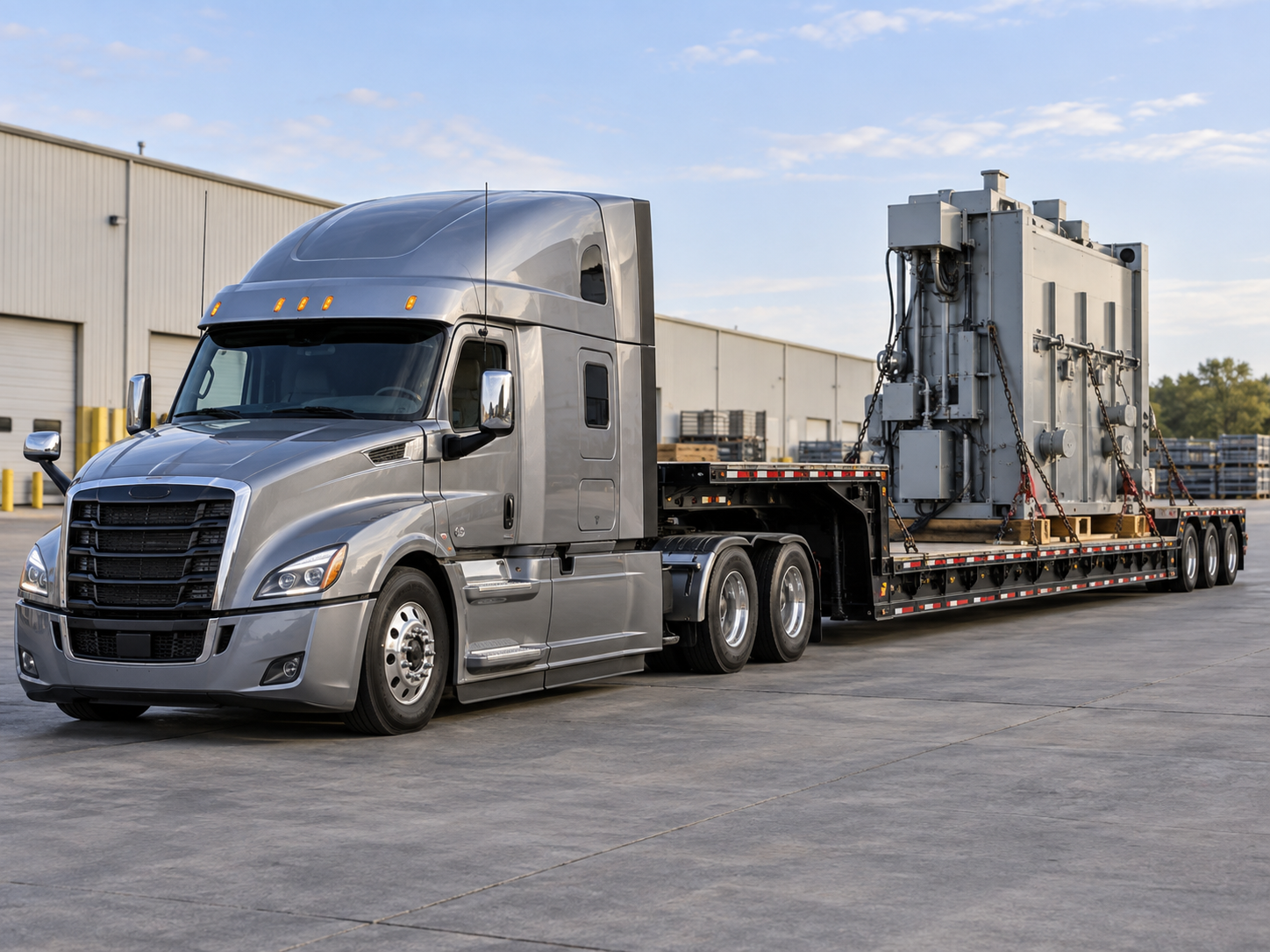

The lower rear deck reduces loaded height. Confirm the deck height and usable lower-deck length; it does not automatically make a tall load legal on every route.
Before requesting a quote
Exact length, width, height and weight; center of gravity, deck placement and loading method.

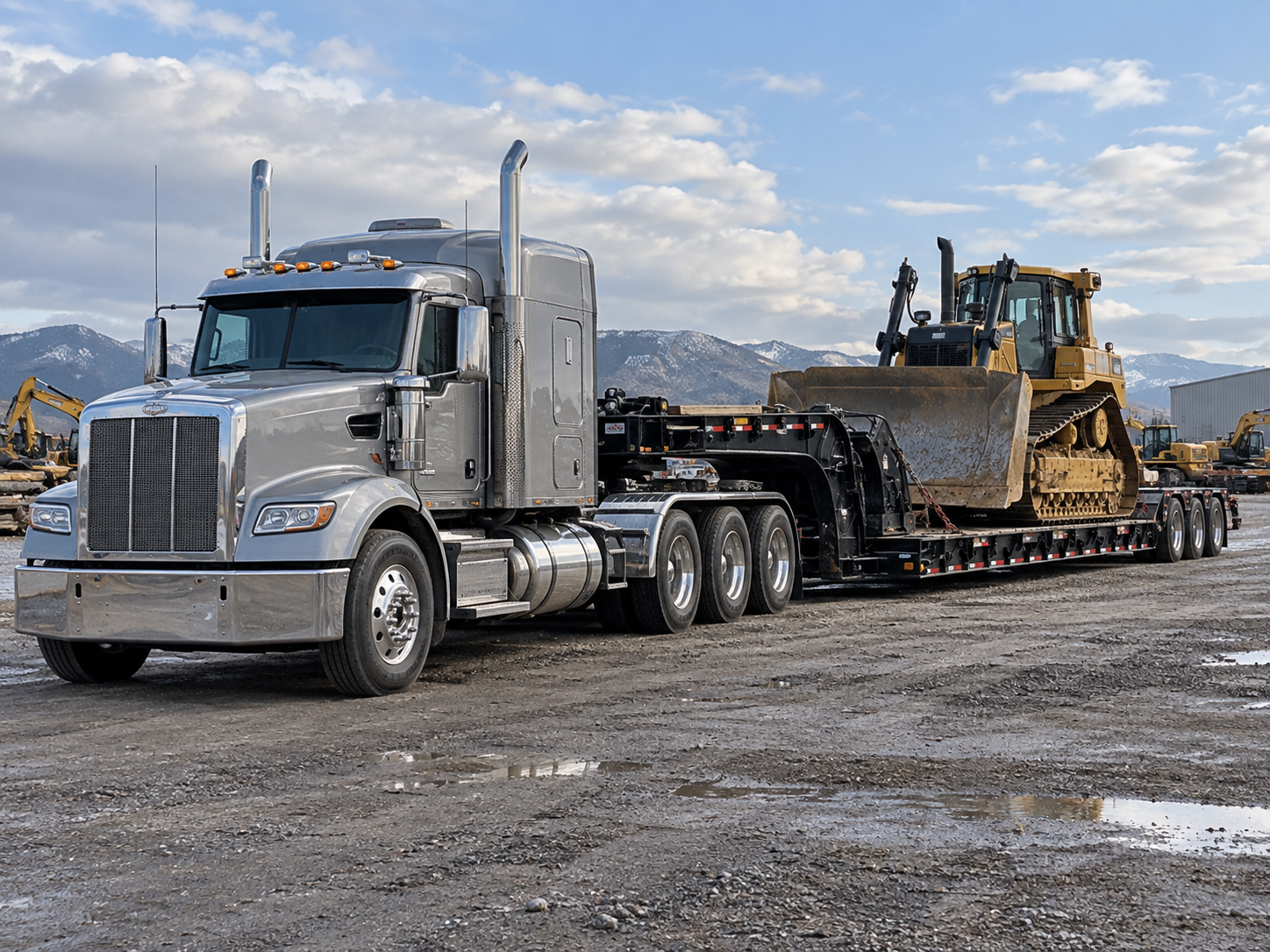

Best for Excavators, bulldozers, loaders, heavy machinery and drive-on equipment.
Typical size
Often 48'–53' overall × 8'6" wide; specialized and expandable configurations differ.
Typical payload / capacity
Approximately 35,000–80,000+ lb across different axle configurations. Heavier moves need a configuration, route and permit assessment.
Loading notes & quote checklist
Good to know
The front gooseneck detaches so the deck can lower for drive-on loading. RGN describes the detachable neck; some lowboys and double drops use this design.
Before requesting a quote
Machine make/model, operating weight, dimensions, running condition, ground clearance and any attachments traveling separately.

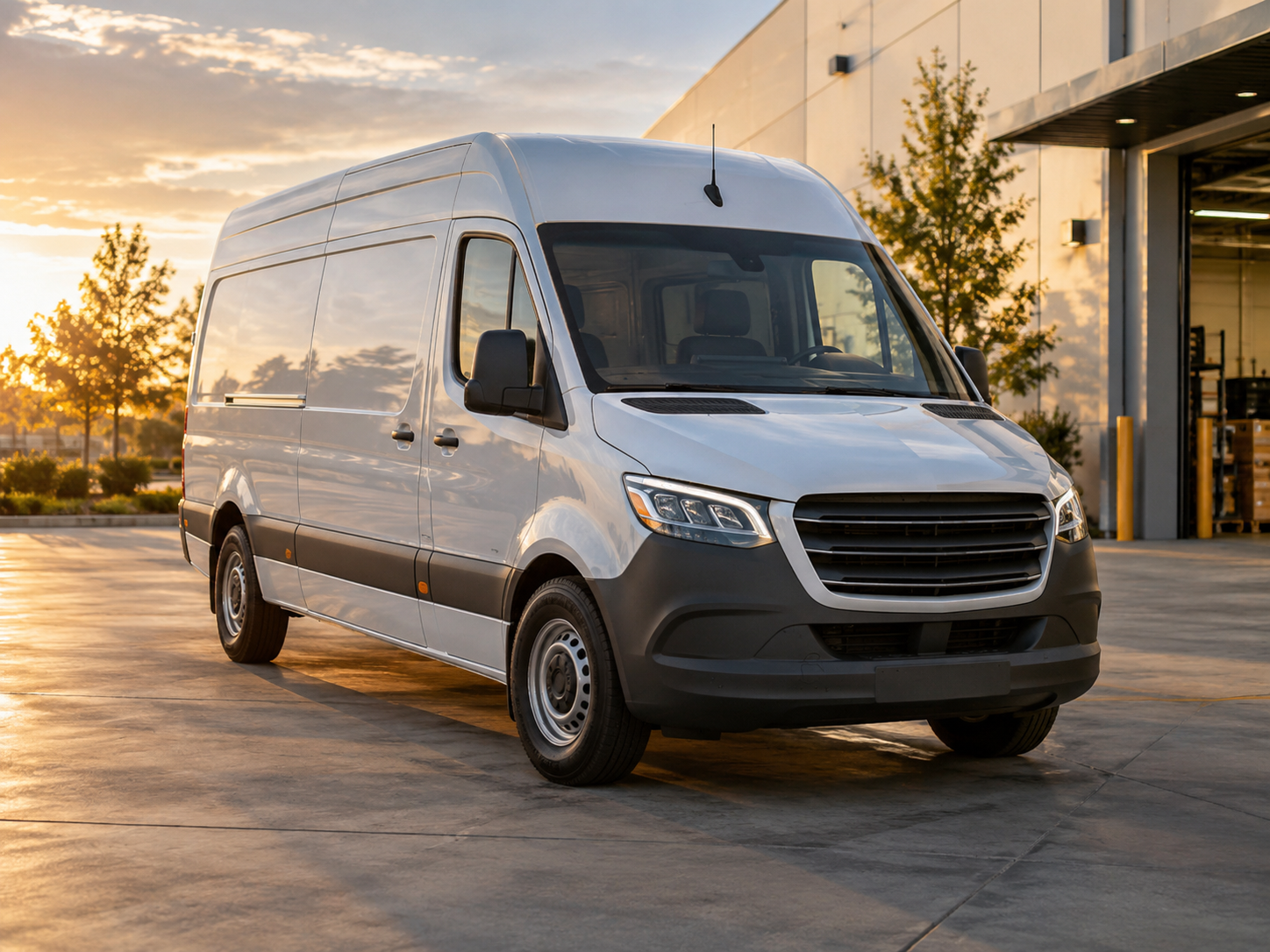

Best for Urgent smaller shipments, parts, automotive freight and time-sensitive deliveries. Medical freight may have additional handling requirements.
Typical cargo area
Approximately 10'–14' long × 4'–6' wide × 5'–6' high, depending on the van. Wheel wells and door openings reduce usable clearance.
Typical payload / capacity
Approximately 2,500–4,000 lb.
Loading notes & quote checklist
Good to know
Flexible for smaller shipments, with much less capacity than a box truck. A pallet that fits the floor may not fit through the doors or between wheel wells.
Before requesting a quote
Piece count, individual dimensions, total weight, floor-loading method and pickup/delivery deadlines.

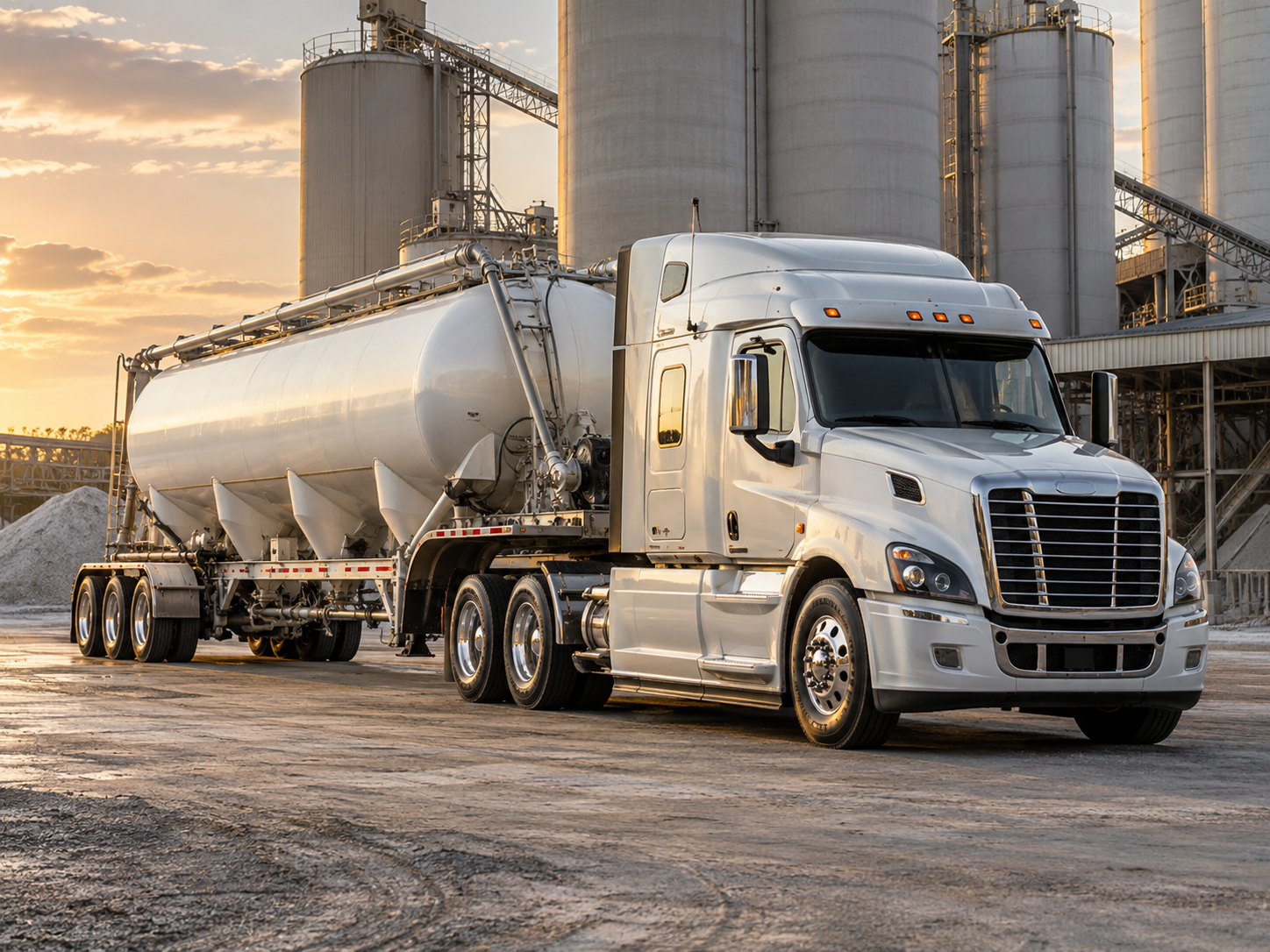

Equipment matched to the product, contamination restrictions and unloading system.
17

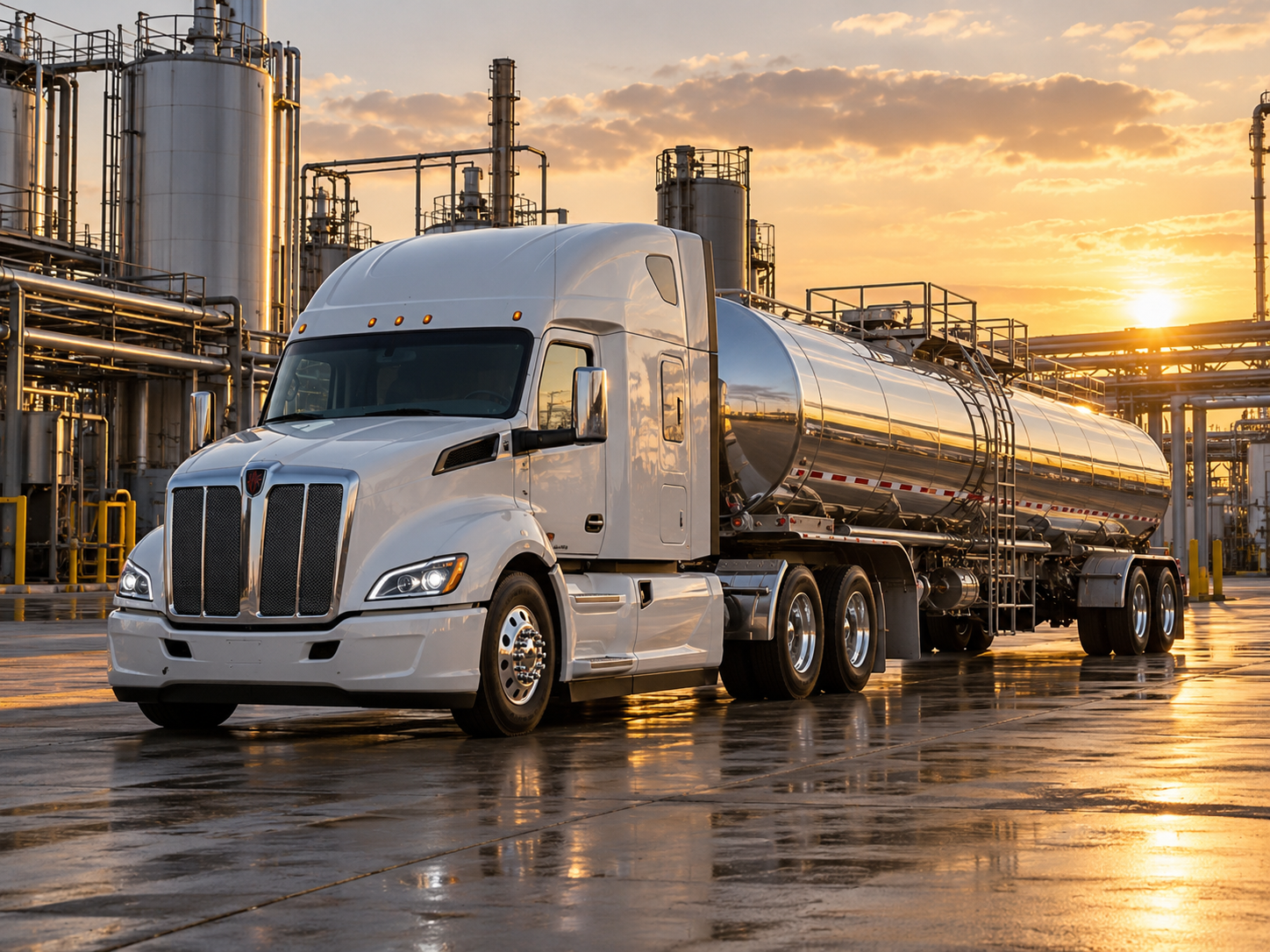

Liquid Tanker
Best for Bulk liquids such as chemicals, food-grade liquids, fuels, oils and beverages, using product-compatible equipment.
Typical tank volume
Approximately 5,000–11,000 gallons across different products and configurations. Tank volume is not the allowable loaded quantity.
Typical payload / capacity
Approximately 40,000–48,000 lb; product density and legal weight can limit gallons before the tank is full.
Loading notes & quote checklist
Good to know
Food-grade, chemical and fuel equipment are not interchangeable. Confirm compatibility, cleaning history and any temperature or hazardous-material requirements.
80,000 lbGeneral federal Interstate benchmark for the complete vehicle and load, not cargo alone. Bridge-formula limits, exceptions and permits matter.
Exterior width
102 in / 8'6"General National Network width benchmark—not interior cargo width. Cargo overwidth and routes require a separate check.
Single / tandem axles
20,000 / 34,000 lbGeneral federal Interstate benchmarks. Weight distribution, axle spacing, bridge formula and applicable exceptions also matter.
Loaded vehicle height
State & route specificThere is no federal height limit. State limits commonly range from 13'6" to 14'; actual bridge and route clearance can be lower.
53' dry van payload
42,000–45,000 lbTypical planning range; verify the actual tractor/trailer and axle loading.
45,000–48,000 lbTypical planning range; concentrated weight and deck ratings also matter.
Standard pallet reference
48 × 40 inAbout 26 positions in a suitable 53' dry van single-layer layout. Check overhang, orientation, weight and clear cargo space.
Equipment dimensions and payloads are typical planning figures, not guaranteed limits. Actual capacity depends on the tractor, trailer, axle configuration, commodity, route, state regulations, and permitting requirements. I confirm equipment requirements with the carrier before booking through UCW Logistics.
Adapted from Jay Rock's supplied equipment guide. Dimensions and payload ranges are general planning estimates, not model-specific specifications. Federal size and weight reference notes were checked against FHWA guidance; manufacturer links illustrate why actual interior dimensions vary.
