Drum and tote shipping
How to Ship Drums and Totes
Enter each secured unit’s size and gross weight, whether it is palletized, and what is inside it. The Load Planner compares the shipment against the equipment in our library.
Drum and tote details
Freight Command Center Freight load report
Jay Rock Freight Broker · UCW Logistics 520-394-7400 · jrock@ucwlogistics.com FreightCommandCenter.com
Your load
Correct anything in the shipment and rebuild the answer. Nothing else you entered is lost.
Use this load
The measurement behind the answer: the shipment as FCC read it, every check, every option in full and why some were ruled out.
What was checked
Everything the planner could settle from what you entered is marked as checked. Everything it could not is listed as requiring confirmation rather than assumed, and the two are never mixed.
Space used
A possible arrangement, not an instruction. It shows that the freight can be placed inside the published floor dimensions; the driver and carrier decide the actual load order, weight distribution and securement.
Equipment fit details
Every trailer in the library measured against this shipment, and what each one said about the freight physically. These are fit answers, not a second set of recommendations.
Requires confirmation
Where a figure is marked as requiring confirmation, it is because this site does not publish that measurement for that equipment -- most often the rear-door opening, which is a different measurement from the interior width.
Recommended planning fit, based on the information entered and the equipment figures this site publishes. Actual equipment specifications vary. Final loading, weight distribution, securement and legal compliance remain subject to the carrier, the driver and the actual equipment.
Your stops are already in it. Nothing you do in here changes the shipment above.
Request a quote
Request received
Thank you. Your quote request is in.
Your reference is . Keep it for any follow-up.
This is a quote request, not a confirmed booking. We’ll review it and follow up using the contact details you provided.
How drums and totes are planned
Plan each shipping unit as it will travel. Four drums strapped to a pallet is one unit, with the pallet’s outside dimensions and the gross weight of everything on it. Palletized and secured units get a space check; loose drums and totes are screened for equipment but not arranged on the floor, because their positions and securement are the carrier’s to plan.
Liquid is heavy, so drum and tote shipments often reach the weight limit before they fill the floor.
What is inside decides the rest. Hazardous materials need correct classification, packaging and a carrier set up to haul them; food-grade or temperature-sensitive product needs compatible equipment. Packaged liquid in drums or totes is not bulk tanker cargo.
What we need to plan it
- How many drums or totes, and how many shipping units
- Palletized or secured units, or loose
- Outside length × width × height of each unit, pallet included
- Gross weight of each unit
- Hazardous material status, from the Safety Data Sheet
- Any temperature requirement
- How it loads and unloads: forklift, dock or liftgate
Equipment to consider
Drums and totes usually ride in enclosed vans, in a refrigerated trailer when the product needs temperature control, and in a box truck when the shipment is small.
53' Dry Van
Palletized freight, boxed goods, packaged products, consumer goods and most general freight.
53' Refrigerated Trailer / Reefer
Produce, frozen products, dairy, meat, beverages and other temperature-sensitive freight. Pharmaceutical shipments may require additional qualifications.
Box Truck / Straight Truck
Smaller shipments, urban deliveries and commercial locations that do not need a full tractor-trailer.
48' Flatbed
Steel, lumber, construction materials, pipe, machinery and general open-deck freight.
The planner compares your shipment against every equipment type in our library that carries this kind of freight. The result it gives you, not this list, is the answer — and actual equipment specifications vary by carrier.
What affects the price
- Gross weight, which usually decides the load before space does
- Hazardous material handling, where it applies
- Temperature control or protection from freezing
- The number of units and the space they take
- Liftgate or forklift at each end
- Distance, the lane and current market conditions
Common mistakes
- Giving the product’s net weight instead of the gross weight of each unit.
- Leaving the pallet out of the dimensions.
- Not saying whether the product is hazardous.
- Stacking drums or totes without checking the container’s rating.
- Putting incompatible products together without checking.
Common questions
How many drums fit on a pallet?

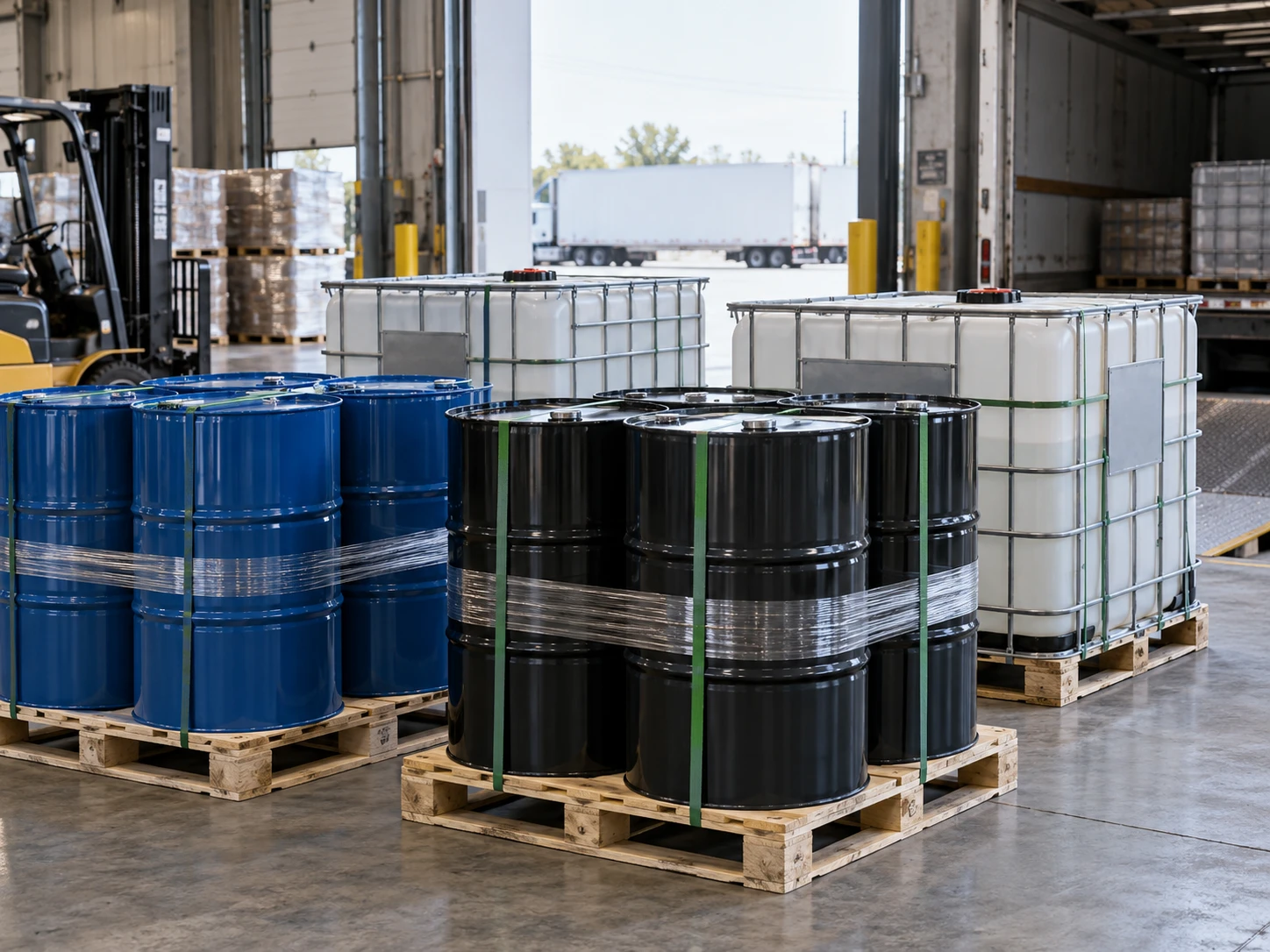

Four 55-gallon drums on a 48 × 40 pallet is common, but drum size, the pallet and the combined weight decide it. Enter each palletized unit with its gross weight.
Can hazardous materials ship in drums or totes?
Yes, with correct classification, packaging and marking, and a carrier authorized to haul them. Choose Hazardous and put the details in the notes; we review it before quoting.
Can totes and IBCs be stacked?
Only when the container is rated for it and the load above is within that rating. The planner screens drums and totes one unit high, and any stacking is confirmed with the carrier.
Is a drum shipment the same as a tanker load?
No. Drums and totes are packaged freight in ordinary enclosed equipment. A tanker carries liquid in bulk, and the main Load Planner handles that separately.
Can drums ship with other freight?
Yes. Add the other freight as another item. Whether the products can share a trailer still has to be confirmed.
Related tools and guides
Ready to price this drum and tote shipment?
Use the planner above, then send the shipment to us for an actual freight price. Once you have run a report, this button opens the quote with the shipment already filled in, so nothing is typed twice.
